Genie Z-34/22 IC
Overview
Articulated Boom Lifts

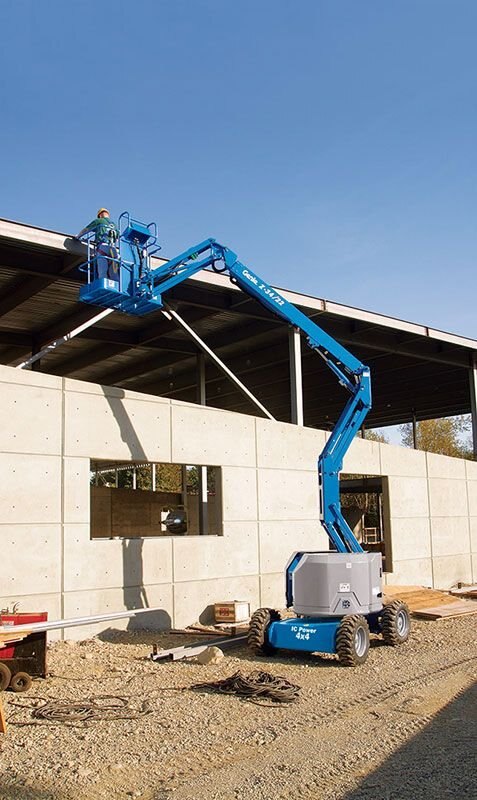

Ideal for outdoor construction and industrial applications, the engine-powered Genie® Z®-34/22 IC articulating boom lift provides lifting versatility with a combination of up, out and over positioning capabilities and outreach that’s second to none. This model is available in 2WD and 4WD models.
Overview
Smooth control, durability and efficient power transmission ideal for rough terrain operation Two-speed hydraulic motors for optimum speed and torque Zero tailswing and nose swing in all positions allow excellent maneuverability in confined areas Ascent and descent along a vertical plane with or without boom retraction or extension
Options
Tire Options
2WD Industrial foam-filled tires (water based) 2WD Non-marking industrial air-filled tires 2WD Non-marking industrial foam-filled tires (water based) 2WD Rough-terrain air-filled tires 4WD Rough-terrain foam-filled tires (water based) Tire sealant: air-filled tires only
Engine Options
28 hp GM, gas / LPG Dual Fuel, including gauge package Cold weather kit: 5W-40 synthetic engine oil, oil pan heater, battery heater Engine gauge package, Kubota: oil pressure, temperature and voltage
Lift/Turntable Options
AC generator, 110V/60Hz or 220V/50Hz, 2200W, hydraulically driven Specialty hydraulic oil (22 gal - cold weather, fire resistant, or biodegradable) LPG tank, 33.5 lb. capacity: GM gas/LPG engine only Hostile environment kit: cylinder bellows, boom wiper seals and platform control box cover
Platforms
4 ft. platform 4ft. or 4 ft. 8 in. platform with ½ height mesh inserts and swing gate
Platform Options
Air line to platform: ? in. inner diameter Aircraft protection kit : 4ft. 8in. platform foam padding and padded disable system Entry toe boards Light package: 2 chassis mounted drive lights, 2 platform mounted work lights Lockable platform control box cover Platform auxiliary top rail Platform swing gate
Specifications
Max Working Height
Z-34/22 IC 2WD: 40 ft 6 in | Z-34/22 IC 4WD: 40 ft 10 in | Z-34/22 IC 2WD: 12.52 m | Z-34/22 IC 4WD: 12.62 m
Max Horizontal Reach
22 ft 3 in | 6.78 m
Max Up And Over Clearance (riser Extended)
Z-34/22 IC 2WD: 15 ft | Z-34/22 IC 4WD: 15 ft 1 in | Z-34/22 IC 2WD: 4.57 m | Z-34/22 IC 4WD: 4.6 m
Documents
Platform Capacity
500 lb | 227 kg
Max Working Height
Z-34/22 IC 2WD: 40 ft 6 in | Z-34/22 IC 4WD: 40 ft 10 in | Z-34/22 IC 2WD: 12.52 m | Z-34/22 IC 4WD: 12.62 m
Max Horizontal Reach
22 ft 3 in | 6.78 m
Max Up And Over Clearance (riser Extended)
Z-34/22 IC 2WD: 15 ft | Z-34/22 IC 4WD: 15 ft 1 in | Z-34/22 IC 2WD: 4.57 m | Z-34/22 IC 4WD: 4.6 m
